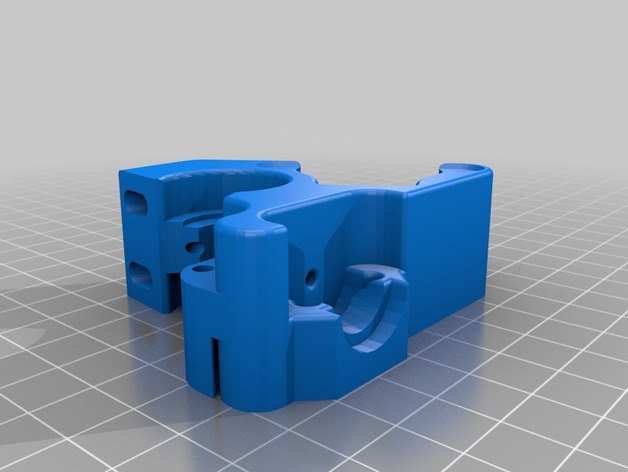

This upgrade of ToyREP will allow you to attach 40x40x10mm fans close to  X, Y and E motor for better cooling and reliability. Fans may even let you use a bit higher print speeds. These models are prepared for 28BYJ-48 with four mounting holes but are also backward compatible with more common motors with two holes only.
Models should work, although I did not print them my self yet. My fans are already glued to similar positions, so I don't need this upgrade :D. And I don't have motors with four mounting holes at home either. They are marked as work-in-progress unless somebody will prove them working.
Change log
2015-09-02

Reuploaded X2_Rev2, as the original had some small issue in hole for M5 nut.
Prepared X1_M8 and X2_M8. These can use quicker M8 threaded rods for Z axis movement instead of slow M5.

2015-08-29

Uploaded revision for motors with four mounting holes.

2015-08-24

Reuploaded X1_Rev1, as the previous one had some issues.

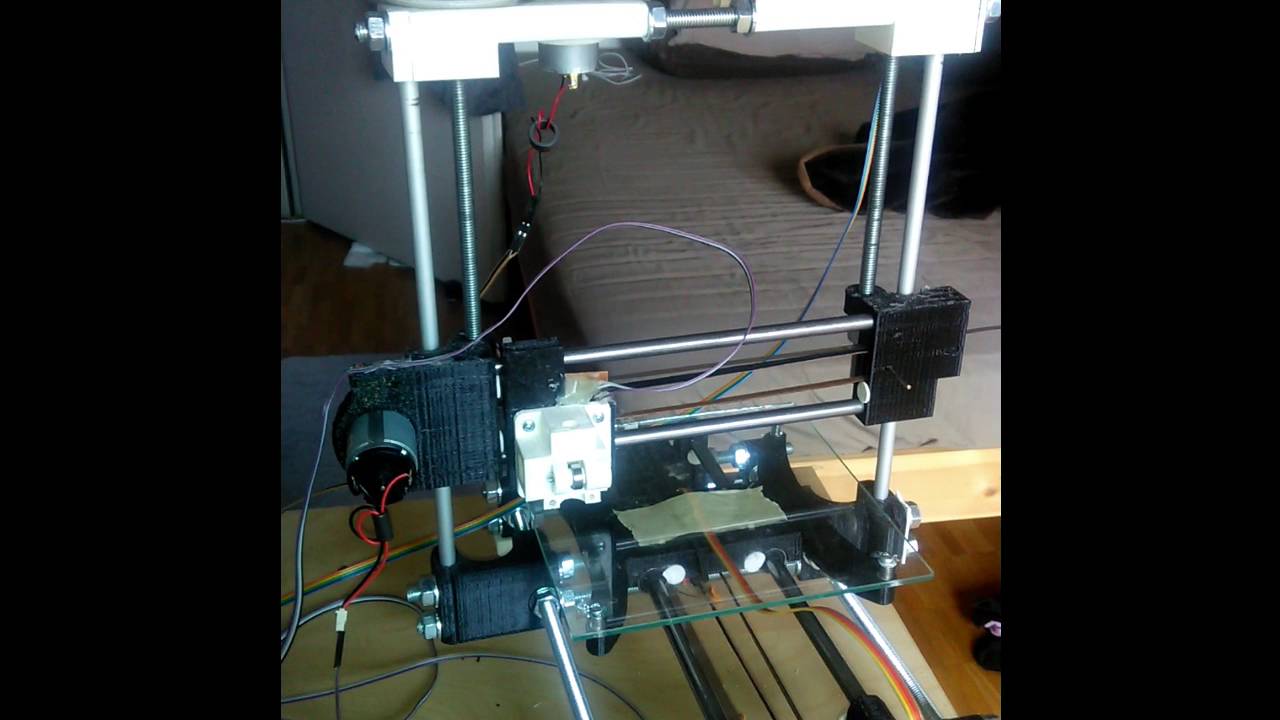

This is a demonstration of the current development status of my DC version of ToyRep printer. The belt on X axis is loose to test the error compensation - th...
