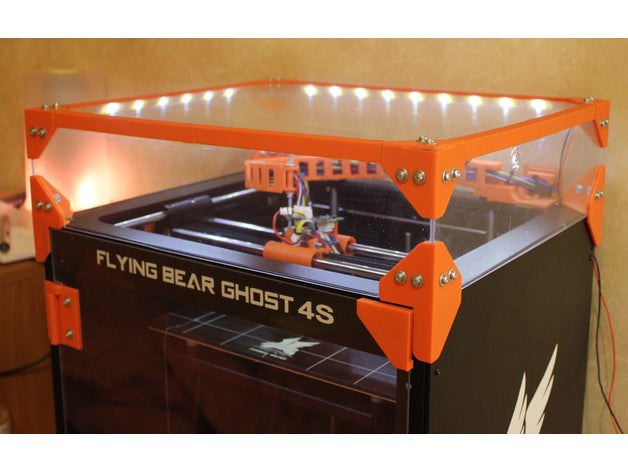

This is a simple box for Ghost4 and Ghost4s.
In the beginning I want to say that I used the cable chain here https://www.thingiverse.com/thing:1760952, for which I thank the author.
Case and the door are easily removed for ease of maintenance.
The case has a place for fixing the backlight for the cable.
Case is made under 2mm thick plexiglass.
For assembly you will need the following parts:
-plexiglas 1000x500x2mm in size (leaving a small margin)
-screws:
-m3x10 50 pieces
-m3x16 4 pieces (not needed if you will not do the backlight)
-m3x8 2 pieces
-hairpin m3x100
-nuts m3 70 pieces
-m3 washers, outer diameter 9mm 140 pieces
-washers m3, outer diameter 7mm 6 pieces
-magnet d15x3 2 jokes
-several couplers
-LED strip 1 meter or slightly larger
The name of the models at the end says how many pieces need to be printed.
Это простой короб для Ghost4 и Ghost4s
В начале я хочу сказать, что использовал кабельную цепь вот эту https://www.thingiverse.com/thing:1760952, за что автору спасибо.
Кэйс и дверь легко снимаются…
